BartonTech 400Plus
Channel baling press for processing materials up to 1 ton per hour. Pressing force 50 tons.
Horizontal balers

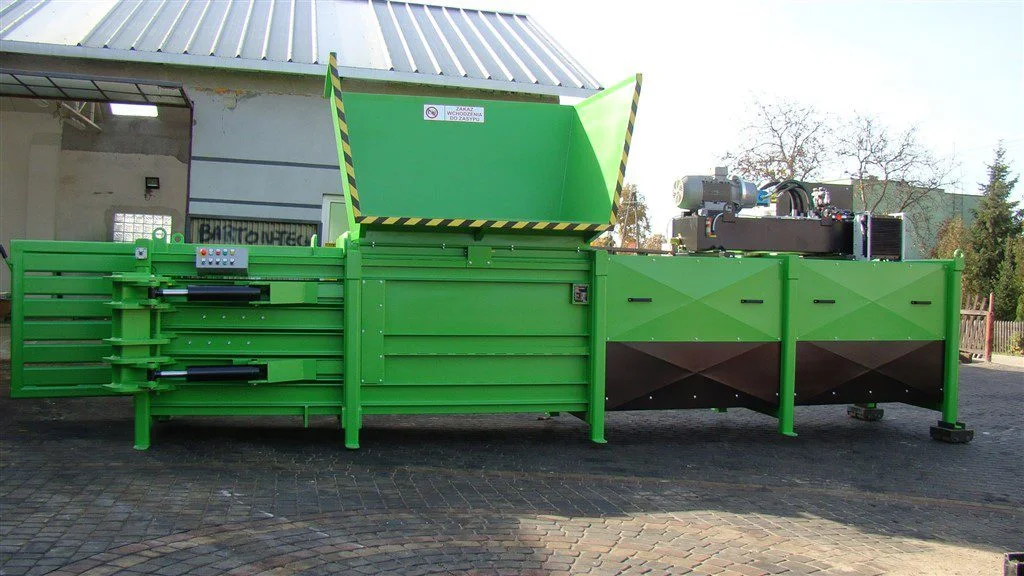

BartonTech 800Max
An extension of the 800Plus model. This model additionally allows ejection of individual bales thanks to the extended stroke. Each individual bale can be ejected separately. The top-tier range with 75 tons pressing force.
Pressing force 75 tons
Individual bale ejection
Extended stroke
Maximum performance
Technical specifications
| Dimensions (H × W × D) | 2805 × 1750 × 8350 mm |
| Machine weight | 7500 kg |
| Loading opening (H × W) | 1900 × 970 mm |
| Bale dimensions | 1100 × 1020 × 1300–1500 mm |
| Bale weight | 400–700 kg |
| Pressing force | 75 t |
| Capacity | 2 t/h |
| Pressing cycle time | 15 kW / 75 s |
| Electric current | 35 A (15 kW motor) |
| Power supply | 400 V |
| Number of wires | 5 |
| Tying direction | Horizontal |
| Number of actuators | 2 |
| Power cable length | 6 m |
| Internal electrical circuit | 24 V DC |
